Settings

Manage your application settings with ease.

The @kit/settings package is a type-safe settings management system designed to simplify the development of settings pages. It provides a declarative approach to define, store, and render settings with built-in support for multiple storage providers, form validation, and UI rendering.

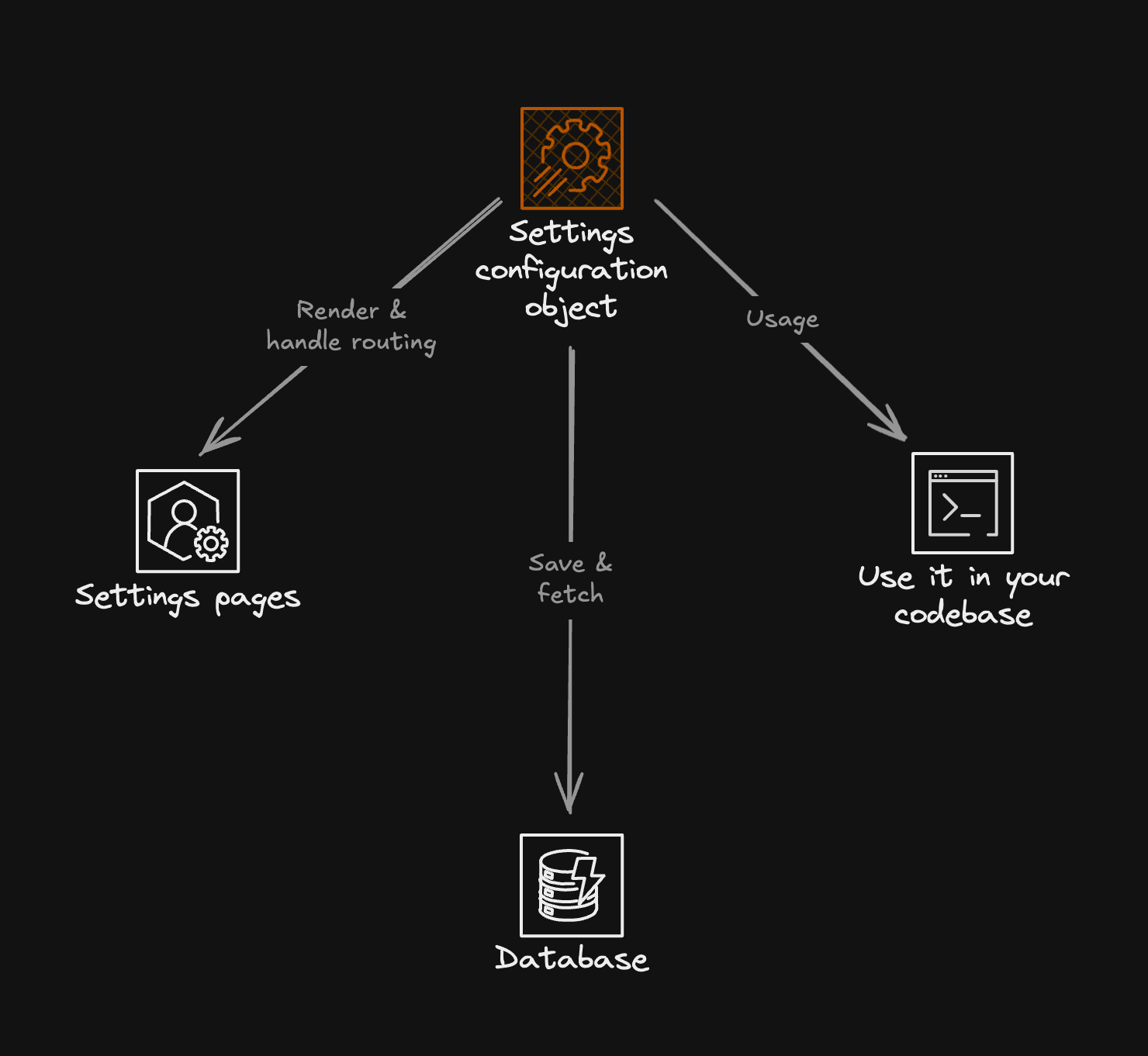

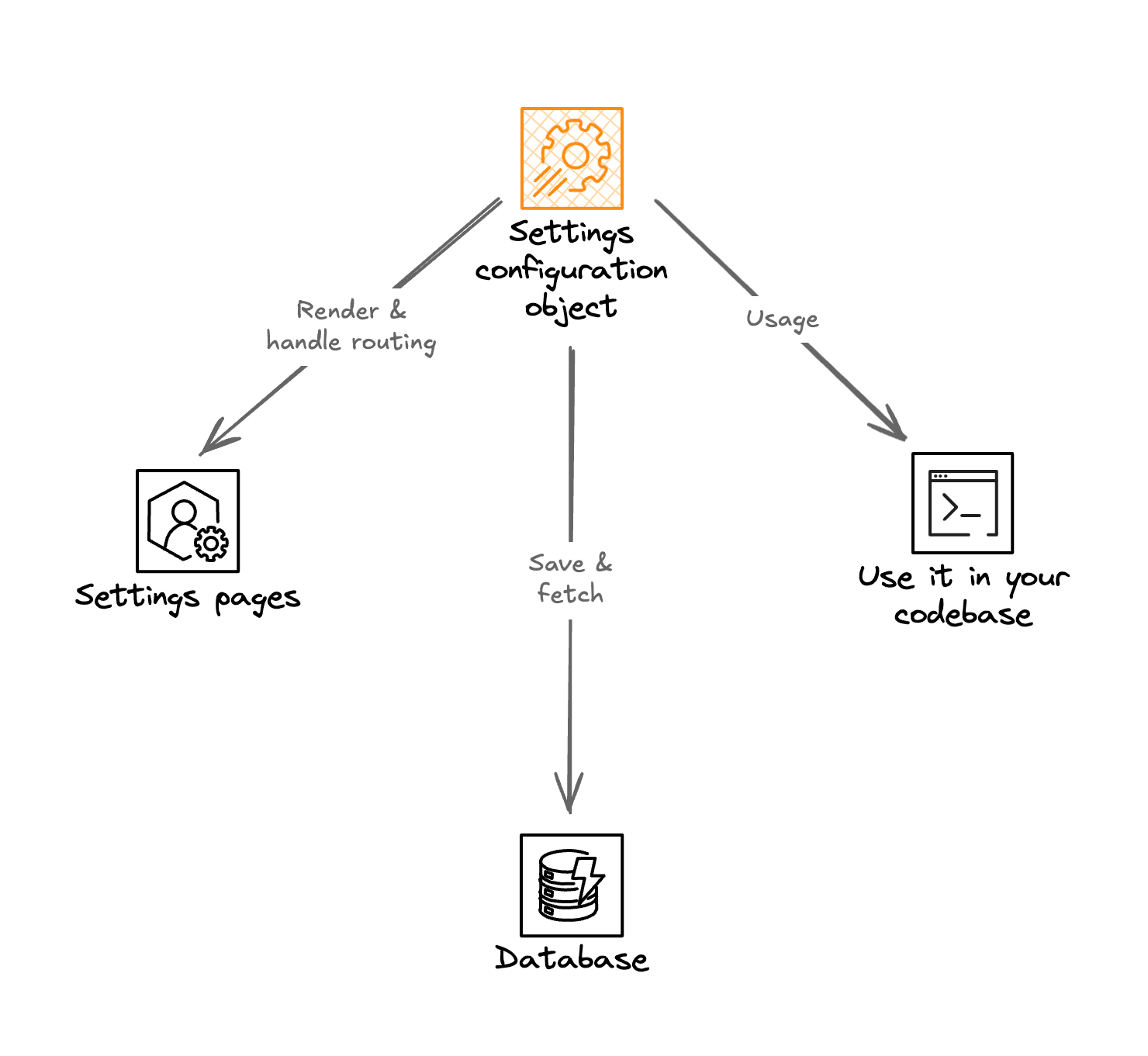

The settings configuration is made of 3 objects from :

  • a UI config object that control the ui (in the apps/dashboard/config/settings.ui.config.ts => app scope)
  • a schema config object that define zod schemas used for type checking (in the kit/shared/src/config/settings.schema.config.ts => repo scope)
  • a server config object that contains the database controllers (in the kit/shared/src/config/settings.server.config.ts => repo scope)

Setup

If you are using the apps/dashboard application, you can skip this section and go to the Add a new settings page section.

Installation

pnpm add '@kit/settings@workspace:*'

Create the server settings configuration

config/settings.server.config.tsx
import {
    organizationAttributesStorage,
    organizationSettingsStorage,
} from '@kit/organization/shared/organization-setting-provider';
import { parseServerSettingConfig } from '@kit/settings/server-config';

export const settingsServer = parseServerSettingConfig({
    providers: {
        organization_attributes: organizationAttributesStorage,
        organization_settings: organizationSettingsStorage,
    },
});

Create the schema settings configuration

config/settings.schema.config.tsx
import { parseSchemaSettingConfig } from '@kit/settings/schema-config';
import { z } from 'zod';

export const settingsSchemas = parseSchemaSettingConfig({
    schema: {
        // User Profile Settings
        user_profile_url: {
            schema: z.string().nullable().default(null),
            storage: 'user_attributes',
        },
        user_name: {
            schema: z.string().default(''),
            storage: 'user_attributes',
        },
        user_phone: {
            schema: z.string().nullable().default(null),
            storage: 'user_attributes',
        },
        user_bio: {
            schema: z.string().max(500).default(''),
            storage: 'user_settings',
        },

        // Appearance Settings
        // other settings...
    },
});

Create the schema settings configuration

config/settings.ui.config.tsx
import type { EXTRA_INPUTS } from '~/app/dashboard/[slug]/settings/[[...settings]]/page-client';
import type { REGISTERED_SETTINGS_INPUTS } from '@kit/settings/www/ui';
import { parseUISettingConfig } from '@kit/settings/ui-config';

export const settingsUI = parseUISettingConfig<
    typeof settingsSchemas.schema,
    typeof REGISTERED_SETTINGS_INPUTS & typeof EXTRA_INPUTS
>({
    ui: [
        {
            group: 'index',
            label: 'About you',
            settingsPages: [
                {
                    // match : "/" endpoint
                    slug: 'index',
                    icon: <Icon.user className="h-4 w-4" />,
                    title: 'Profile',
                    description: 'User profile settings',
                    settings: [
                        {
                            type: 'form',
                            id: 'profile-form',
                            header: (
                                <>
                                    <div className="text-2xl font-bold">Profile</div>
                                    <Muted>Edit your profile information here.</Muted>
                                </>
                            ),
                            submitButton: {
                                text: 'Save Profile',
                            },
                            settings: [
                                {
                                    type: 'user_media',
                                    slug: 'user_profile_url',
                                    label: 'Profile URL',
                                    triggerClassName: 'h-48 w-48 rounded-full',
                                    imageClassName: 'w-full h-full object-cover',
                                    placeholder: <AvatarPlaceholder className="size-full text-6xl" />,
                                },
                                {
                                    type: 'text',
                                    slug: 'user_name',
                                    label: 'Name',
                                    description:
                                        'May appear when you are mentioned or when you add content to the platform',
                                },
                                {
                                    type: 'textarea',
                                    slug: 'user_bio',
                                    label: 'Bio',
                                    description: 'Tell us more about yourself',
                                },
                                {
                                    type: 'ui',
                                    render: <Separator />, // to add custom ui
                                },
                                {
                                    type: 'phone',
                                    slug: 'user_phone',
                                    label: 'Phone',
                                    description: 'Used for authentication purposes only',
                                },
                            ],
                        },
                    ],
                },
                // set you other pages here {...},
            ],
        },
        // other page groups here {...},
    ],
});

Add the settings pages

app/settings/[[...settings]]/page.tsx
'use server';

import React from 'react';

import { SettingSaveButtonAnchor } from '@kit/settings/ui';
import { ClientSettingsPage } from './page-client';

async function SettingsPage({
    params,
}: {
    params: {
        settings: string[];
    };
}): Promise<React.JSX.Element> {
    const awaitedParams = await params;
    return (
        <div className="flex flex-col">
            <div className="flex h-24">{/* your top bar component */}
                <SettingSaveButtonAnchor />{/* display a save button outside of the settings pages */}
            </div>
            <div className="flex-1">
                <ClientSettingsPage awaitedParams={awaitedParams} />
            </div>
        </div>
    );
}

export default SettingsPage;
app/settings/[[...settings]]/page-client.tsx
'use client';

import { OrganizationSettingMedia } from '@kit/organization/web/ui';
import { SettingsPages } from '@kit/settings/www/ui';
import { settingsSchemas } from '@kit/shared/config/settings.schema.config';
import { cn } from '@kit/utils';
import { SettingWrapperComponent } from '@kit/utils/quick-form';
import { QuestionSelectInput } from '~/components/settings/question-select-input';
import { settingsUI } from '~/config/settings.ui.config';
import { useCtxTrpc } from '~/trpc/trpc-client-provider';

export const EXTRA_INPUTS = { organization_media: OrganizationSettingMedia, question_select: QuestionSelectInput };

const Wrapper: SettingWrapperComponent = ({ className, header, children }) => {
    return (
        <div className={cn('space-y-4 px-4 py-8 sm:px-8', className)}>
            {header && <div className="space-y-2">{header}</div>}
            {children}
        </div>
    );
};

export function ClientSettingsPage({ awaitedParams }: { awaitedParams: any }) {
    const { clientTrpc } = useCtxTrpc();

    return (
        <SettingsPages
            inputs={EXTRA_INPUTS}
            clientTrpc={clientTrpc}
            settingsUI={settingsUI}
            settingsSchemas={settingsSchemas}
            Wrapper={Wrapper}
            params={awaitedParams}
        />
    );
}

Use the settings sidebar

First you need to get the ui config from the server.

app/dashboard/[slug]/layout.tsx
'use server';

import React from 'react';
import { settingsModel } from '~/config/settings.config';
import { SettingsSidebar } from '~/components/settings-sidebar';

export default async function OrganizationLayout({
    children,
}: React.PropsWithChildren): Promise<React.JSX.Element> {
    // we must serialize the ui config to use it client side
    const uiConfig = settingsModel.getSerializedUIConfig();

    return (
        <div className="flex h-screen flex-row overflow-hidden">
            <SettingsSidebar uiConfig={uiConfig} />
            <div className="flex-1">{children}</div>
        </div>
    );
}

Then you can use the settings sidebar component in your layout.

components/settings-sidebar.tsx
'use client';

import React from 'react';
import { SettingsNavigation, type UIConfig } from '@kit/settings';
import { ScrollArea } from '@kit/ui/scroll-area';

export default function SettingsSidebar({ uiConfig }: { uiConfig: UIConfig<any>[] }): React.JSX.Element {
    return (
        <ScrollArea className="h-full">
            <SettingsNavigation
                uiConfig={uiConfig}
                basePath={"/settings"}
            />
        </ScrollArea>
    );
}

Use the settings in your codebase

import { settingsSchemas } from '../config/settings.schema.config';
import { settingsServer } from '../config/settings.server.config';
import { getDBClient } from '@kit/shared/server/get-db-client';
import { SettingServerModel } from '@kit/settings/shared/server/setting-server-model';

export default async function SomewhereInYourCodebase() {
    const settingsModel = new SettingServerModel(getDBClient, serverConfig, schemaConfig);
    const { 'user_name': userName } = await settingsModel.getSettings(['user_name']);
    return <div>{userName}</div>;
}

Add new settings

Now that you have your settings model, you can add new settings to it.

Let's try to add a use_full_width setting to the settings model.

We gonna use the user_settings storage provider. See the Storage section for more information.

Update the schema settings configuration

config/settings.schema.config.tsx
import { parseSchemaSettingConfig } from '@kit/settings/schema-config';
import { z } from 'zod';

export const settingsSchemas = parseSchemaSettingConfig({
    schema: {
        // Your existing settings...
        use_full_width: {
            schema: z.boolean().default(false),
            storage: 'user_settings',
        },
        // Your existing settings...
    },
});

Update the schema settings configuration

config/settings.ui.config.tsx
import type { EXTRA_INPUTS } from '~/app/dashboard/[slug]/settings/[[...settings]]/page-client';
import type { REGISTERED_SETTINGS_INPUTS } from '@kit/settings/www/ui';
import { parseUISettingConfig } from '@kit/settings/ui-config';

export const settingsUI = parseUISettingConfig<
    typeof settingsSchemas.schema,
    typeof REGISTERED_SETTINGS_INPUTS & typeof EXTRA_INPUTS
>({
    ui: [
        {
            group: 'index',
            label: 'About you',
            settingsPages: [
                {
                    // match : "/" endpoint
                    slug: 'index',
                    icon: <Icon.user className="h-4 w-4" />,
                    title: 'Profile',
                    description: 'User profile settings',
                    settings: [
                        // Your existing settings...
                        {
                            type: 'form',
                            id: 'profile-form',
                            header: (
                                <>
                                    <div className="text-2xl font-bold">Profile</div>
                                    <Muted>Edit your profile information here.</Muted>
                                </>
                            ),
                            submitButton: {
                                text: 'Save Profile',
                            },
                            settings: [
                                // Your existing settings...
                                {
                                    type: 'phone',
                                    slug: 'user_phone',
                                    label: 'Phone',
                                    description: 'Used for authentication purposes only',
                                },
                                {
                                    type: 'checkbox',
                                    slug: 'use_full_width',
                                    label: 'Use full width',
                                    description: 'Always display the application in full width on mobile and desktop',
                                },
                                // Your existing settings...
                            ],
                        },
                    ],
                },
                // set you other pages here {...},
            ],
        }
        // other page groups here {...},
    ],
});

The settings UI and database storage is already handled, just use your new use_full_width setting

somewhere-in-your-codebase.tsx
import { settingsSchemas } from '../config/settings.schema.config';
import { settingsServer } from '../config/settings.server.config';
import { getDBClient } from '@kit/shared/server/get-db-client';
import { SettingServerModel } from '@kit/settings/shared/server/setting-server-model';

export default async function SomewhereInYourCodebase({children}: React.PropsWithChildren) {
    const settingsModel = new SettingServerModel(getDBClient, serverConfig, schemaConfig);
    const { checkbox } = await settingsModel.getSettings(['checkbox']);

    return <div className={cn(checkbox ? 'w-full' : 'w-1/2')}>
        {children}
    </div>;
}

Storage

The database storage is handled by the StorageProviders.

StorageProvider

PropTypeDefault
fetchFromStorage*
function
saveToStorage*
function

By default, two storage providers are present:

  • user_settings: Stores settings in the user_setting table as row entries.
  • user_attributes: Stores settings in the user table as column entries.

Add new storage providers

You can pass new storage providers to the parseServerSettingConfig function.

config/settings.server.config.tsx
import { createSettingModel, type StorageProvider } from '@kit/settings';
import { getDBClient } from '@kit/shared/server/get-db-client';
import { z } from 'zod';
// other imports...

const yourNewStorageProvider: StorageProvider = {
    fetchFromStorage: async (rawKeys: string[], getDB) => {
        const db = await getDB();

        // do your things to fetch the settings record

        return settingsRecord; // {'key1': value1, 'key2': value2, ...}
    },
    saveToStorage: async (rawValues: Record<string, any>, getDB) => {
        const db = await getDB();

        // save the settings where you want
    },
};

export const settingsServer = parseServerSettingConfig({
    providers: {
        your_new_storage_provider: yourNewStorageProvider,
    },
});

Now you can use your new storage provider in your settings model.

config/settings.schema.config.tsx
import { parseSchemaSettingConfig } from '@kit/settings/schema-config';
import { z } from 'zod';

export const settingsSchemas = parseSchemaSettingConfig({
    schema: {
        // ...
        your_new_setting: {
            schema: z.string().default(''),
            storage: 'your_new_storage_provider',
        },
        // ...
    },
});

Inputs

By default, we add the following inputs to the QuickForm component :

  • user_media: UserSettingMedia to manage user media
  • organization_media: OrganizationSettingMedia to manage organization media

Check the Media Manager page to learn more about the user_media and organization_media inputs.

Documentation

Implement your own documentation website with Fumadocs.

Interest

Why the settings package is so powerful.
