Input Drag Control

Update a number using drag controls

This component is used in the Number Input component to implement the drag behavior.

Installation

Copy and paste the following code into your project.

hooks/use-input-drag-control.ts
'use client';

import { useCallback, useEffect, useRef, useState } from 'react';

const getStepValue = (
    e: MouseEvent | React.WheelEvent | React.KeyboardEvent,
    lockToStep: boolean
): number => {
    let step = 1;
    if (e.ctrlKey) {
        step = 100;
    } else if (e.shiftKey) {
        step = 10;
    } else if (e.altKey && !lockToStep) {
        step = 0.1;
    }
    return step;
};

/**
 * Get the inner y position of the window.
 * @param y
 * @returns The inner y position of the window.
 */
const getWindowInnerYPosition = (y: number): number => {
    let finalY = y % window.innerHeight;
    if (finalY < 0) {
        finalY += window.innerHeight;
    }
    return finalY;
};

/**
 * Get the inner x position of the window.
 * @param x
 * @returns The inner x position of the window.
 */
const getWindowInnerXPosition = (x: number): number => {
    let finalX = x % window.innerWidth;
    if (finalX < 0) {
        finalX += window.innerWidth;
    }
    return finalX;
};

export interface UseInputDragControlParams {
    /**
     * The container able to trigger the drag control.
     */
    containerRef: React.RefObject<HTMLElement | null>;
    /**
     * The value of the number input.
     */
    value: number;
    /**
     * The step of the number input.
     * @default 1
     */
    step?: number;
    /**
     * The minimum value of the number input.
     */
    min?: number;
    /**
     * The maximum value of the number input.
     */
    max?: number;
    /**
     * The function to call when the value changes.
     */
    onDrag?: (newVal: number) => void;
    /**
     * Scale factor for drag sensitivity. Higher values make dragging more sensitive.
     * @default 1
     */
    dragScale?: number;
    /**
     * When true, disables ALT key 0.1 multiplier and snaps value to multiples of step.
     * @default false
     */
    lockToStep?: boolean;
    /**
     * Drag direction. Vertical: top is positive. Horizontal: right is positive.
     * @default 'vertical'
     */
    dragDirection?: 'vertical' | 'horizontal';
}

export const useInputDragControl = ({
    containerRef,
    value,
    step = 1,
    min,
    max,
    onDrag,
    dragScale = 1,
    lockToStep = false,
    dragDirection = 'vertical',
}: UseInputDragControlParams) => {
    const [isDragging, setIsDragging] = useState(false);
    const [xLocation, setXLocation] = useState(0);
    const [yLocation, setYLocation] = useState(0);
    const valueRef = useRef(value);
    const accumRef = useRef(0); // accumulate raw pointer movement along chosen axis

    // Keep an up-to-date reference to the external value so new drags
    // always start from the latest value
    useEffect(() => {
        valueRef.current = value;
    }, [value]);

    const handleMouseDown = useCallback(
        (e: React.MouseEvent) => {
            // Don't prevent default - let the input focus normally
            const currentValue = valueRef.current;
            const startX = e.clientX;
            const startY = e.clientY;
            setXLocation(startX);
            setYLocation(startY);

            let initialValue = currentValue;
            let delta = 0;
            let hasMoved = false;
            const moveThreshold = 3; // pixels threshold to start dragging

            const handleMouseMove = (e: MouseEvent) => {
                const deltaX = Math.abs(e.clientX - startX);
                const deltaY = Math.abs(e.clientY - startY);

                // Only start dragging if we've moved beyond the threshold
                if (!hasMoved && (deltaX > moveThreshold || deltaY > moveThreshold)) {
                    hasMoved = true;
                    setIsDragging(true);

                    // Request pointer lock for smooth dragging
                    if (containerRef.current) {
                        containerRef.current.requestPointerLock();
                    }
                    accumRef.current = 0;
                }

                if (hasMoved) {
                    const pxPerStep = Math.max(1, dragScale);
                    const finalStepUnit = step * getStepValue(e, lockToStep);
                    // Compute delta based on axis: vertical (top is positive), horizontal (right is positive)
                    const movementY = e.movementY;
                    const movementX = e.movementX;
                    const axisMovement = dragDirection === 'vertical' ? -movementY : movementX;
                    // accumulate axis movement and only apply value change when we reached a multiple of pxPerStep
                    accumRef.current += axisMovement;
                    const stepsCount = (accumRef.current / pxPerStep) | 0; // truncate toward zero
                    if (stepsCount !== 0) {
                        accumRef.current -= stepsCount * pxPerStep;
                        delta += stepsCount * finalStepUnit;
                    }
                    const newVal = initialValue + delta;

                    // Handle min/max clamping
                    let finalValue = newVal;
                    if (max !== undefined && newVal > max) {
                        finalValue = max;
                        delta = max - initialValue;
                    } else if (min !== undefined && newVal < min) {
                        finalValue = min;
                        delta = min - initialValue;
                    }

                    // Update cursor position using movement deltas
                    setXLocation((prevX) => {
                        const newX = prevX + e.movementX;
                        return getWindowInnerXPosition(newX);
                    });

                    setYLocation((prevY) => {
                        const newY = prevY + e.movementY;
                        return getWindowInnerYPosition(newY);
                    });

                    onDrag?.(finalValue);
                }
            };

            const handleMouseUp = () => {
                if (hasMoved) {
                    document.exitPointerLock();
                    setIsDragging(false);
                }
                document.removeEventListener('mousemove', handleMouseMove);
                document.removeEventListener('mouseup', handleMouseUp);
            };

            document.addEventListener('mousemove', handleMouseMove);
            document.addEventListener('mouseup', handleMouseUp);
        },
        [step, min, max, onDrag, containerRef, dragScale, lockToStep]
    );

    // Handle custom cursor
    useEffect(() => {
        const cursor = document.getElementById('locked-cursor');
        if (isDragging) {
            if (cursor) {
                if (document.pointerLockElement) {
                    cursor.style.top = yLocation + 'px';
                    cursor.style.left = xLocation + 'px';
                    cursor.style.transform = `${dragDirection === 'horizontal' ? 'rotate(90deg)' : 'rotate(0deg)'}`;
                }
            } else {
                // Create custom drag cursor
                const createdCursor = document.createElement('div');
                createdCursor.innerHTML = `
                    <svg stroke="currentColor" fill="currentColor" stroke-width="0" viewBox="0 0 24 24" height="24" width="24" xmlns="http://www.w3.org/2000/svg">
                        <path stroke="white" stroke-linecap="round" stroke-width="1" d="M13 6.99h3L12 3 8 6.99h3v10.02H8L12 21l4-3.99h-3z"></path>
                    </svg>
                `;
                createdCursor.classList.add('drag-icon');
                createdCursor.id = 'locked-cursor';
                createdCursor.style.cssText = `
                    position: fixed;
                    pointer-events: none;
                    z-index: 9999;
                    color: #6b7280;
                    transform: ${dragDirection === 'horizontal' ? 'rotate(90deg)' : 'rotate(0deg)'};
                `;
                document.body.append(createdCursor);
                createdCursor.style.top = yLocation + 'px';
                createdCursor.style.left = xLocation + 'px';
            }
        } else if (cursor) {
            cursor.remove();
        }
    }, [xLocation, yLocation, isDragging, dragDirection]);

    return { handleMouseDown, isDragging };
};

Nothing else, no dependencies.

Usage

import { useInputDragControl } from '@kit/ui/hooks/use-input-drag-control';
const { handleMouseDown, isDragging } = useInputDragControl({
    containerRef: localRef,
    value: currentValue,
    step,
    min,
    max,
    onDrag: onValueChange,
    dragScale,
    lockToStep,
    dragDirection,
});

Look at the API Reference for more details on the parameters.

Features

  • Drag controls
  • Inifnite drag
  • Keyboard support
  • Scale, direction, step customization

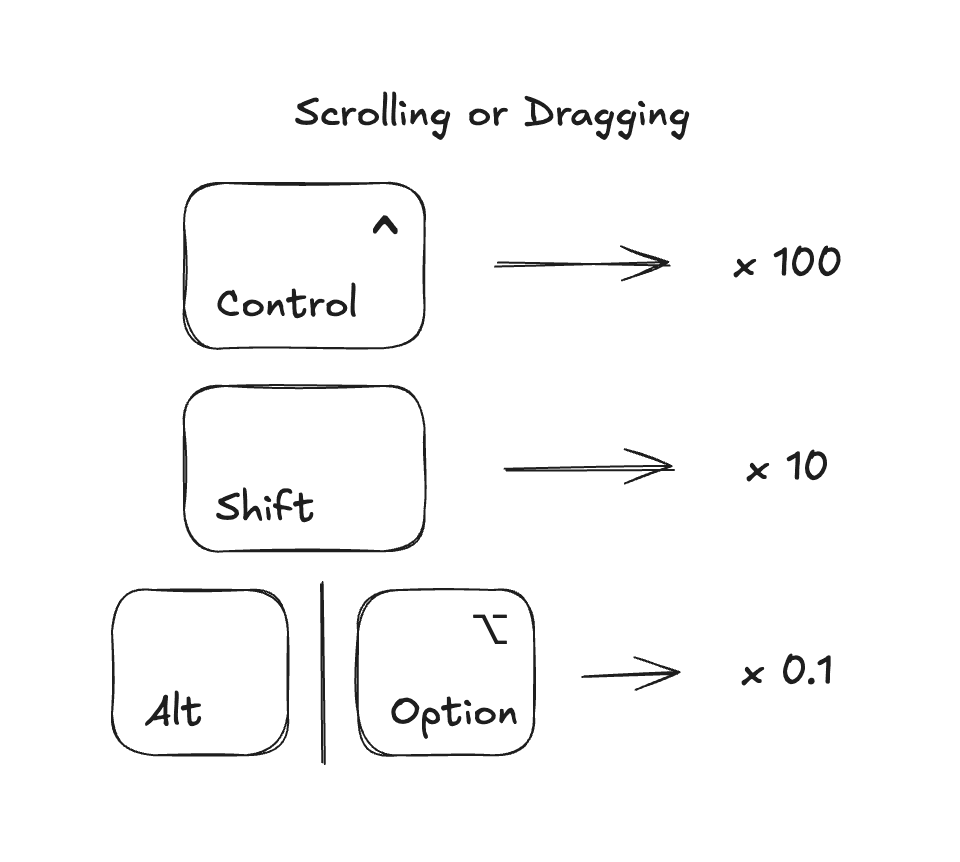

Control step factor with the keyboard

You can control the step factor with the keyboard by holding the ALT, SHIFT, or CTRL key.

Number Input component anatomy

Number Input component anatomy

API Reference

UseInputDragControlParams

PropTypeDefault
containerRef*
React.RefObject<HTMLElement | null>
value*
number
step
number
1
min
number
max
number
onDrag
function
dragScale
number
1
lockToStep
boolean
false
dragDirection
"vertical" | "horizontal"
'vertical'
